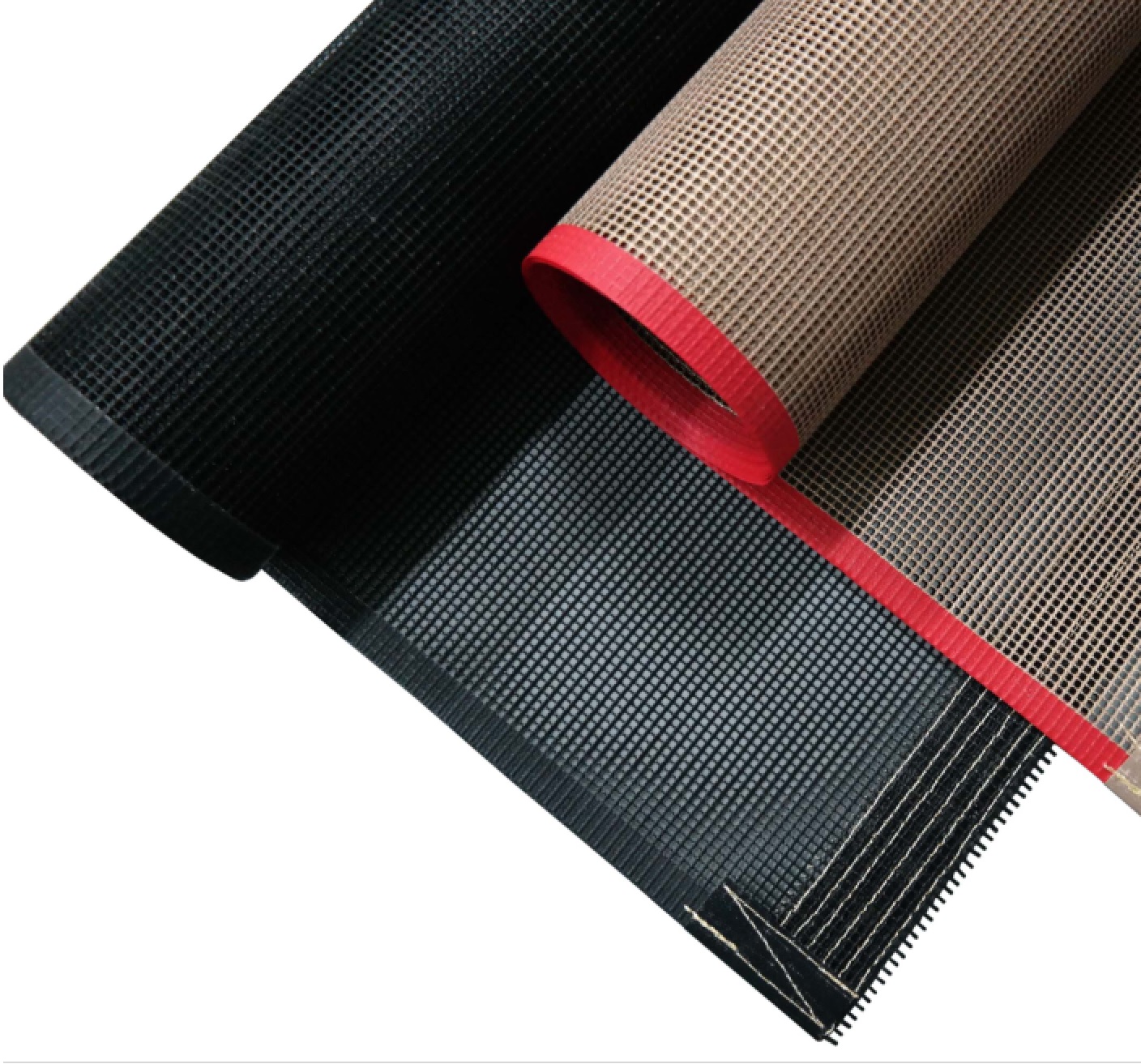

PTFE Mesh Conveyor Belt
PTFE Mesh Conveyor Belt PTFE Mesh Conveyor Belt PTFE Mesh Conveyor Belt
  • PTFE Mesh Conveyor Belt

PTFE Mesh Conveyor Belt

PTFE Mesh Conveyor Belt can be supplied in brown, blue or black U.V. barrier coating for UV drying. Width of up to 5000mm wide, the fluorocarbon resin used in the curing process is chemically inert, woven glass substrate provides excellent strength and di
Add to Inquiry
Description
Description

PTFE Mesh Conveyor Belt

PTFE Mesh Conveyor Belt can be supplied in brown, blue or black U.V. barrier coating for UV drying. Width of up to 5000mm wide, the fluorocarbon resin used in the curing process is chemically inert, woven glass substrate provides excellent strength and dimensional stability.The mesh belt is used for screen printing, and the imprinting material is conveyed through the drying furnace and the cooling chamber. These belts are durable and perform well at a wide range of operating temperatures. Skyflon has Has developed a full range of open mesh belt products for belt dryers.These belts can be used for textile,food,screen printing, packaging, electronics, and other industries.


Properties

  • Lightweight and energy efficiency for economical operation
  • Outstanding temperature resistance (-170oC + 260oC)
  • Low thermal mass
  • Controlled porosity
  • Superior non-stick surface,easy to clean
  • Exceptional strength and dimensional stability
  • Superior tracking

To assure the best performance and accurate tracking, we recommend that wherever possible, conveyor belts be ordered with splices. We offer all the standard splices. Please call our technical service department to discuss which splice would be best for your specific application.
  • Overlap splice
  • Butt splice
  • Alligator/Clipping splice
  • Castellated Splice
  • Bullnose Splice

To enhance the tracking and belt life, Zobon offers three styles of edging:

  • PTFE Film - PTFE film encapsulates the edge the help stop fraying and offer protection. The benefit to using film is that it is soft in nature and will stretch with the belt when under tension.

  • PTFE Coated Fiberglass - PTFE coated fiberglass edging can be used as a sturdier option to film and a good option if a tracking arm is used to detect the edge of the belt when coming in to contact with it.

  • PTFE Coated Kevlar - This is the most durable of the edging types and is a good option when the edge of the belt will be in contact with tracking aids. It is also a good option when considering using tracking studs of cord on the belt.




Specification

Model Mesh Size Material Thickness Weight Max Width Colour
6001 1x1mm  fiberglass 0.75mm 560g/m² 4000mm Brown
6001 AS 1x1mm  fiberglass 0.75mm 560g/m² 4000mm Black
6004 4x4mm  fiberglass 1.0mm 450g/m² 4000mm Brown
6004 AS 4x4mm  fiberglass 1.0mm 450g/m² 4000mm Black
6004 Blue 4x4mm  fiberglass 1.0mm 490g/m² 4000mm Blue
6008 4x4mm  fiberglass 1.0mm 600g/m² 4000mm Brown
6008 Blue 4x4mm  fiberglass 1.0mm 600g/m² 4000mm Blue
6008 AS 4x4mm  fiberglass 1.0mm 600g/m² 4000mm Black
6015 2x2.5mm  fiberglass 0.70mm 505g/m² 4000mm Brown
6015 AS 2x2.5mm  fiberglass 0.70mm 505g/m² 4000mm Black
6025 2x2.5mm  fiberglass 1.0mm 700g/m² 4000mm Brown
6025 Blue 2x2.5mm  fiberglass 1.0mm 800g/m² 4000mm Blue
6025 AS 2x2.5mm  fiberglass 1.0mm 700g/m² 4000mm Black
