Name: Standard Grade PTFE Glass Fabrics
Brand: SKYFLON
SKU: 00093
Availability: InStock
Rating: 5 (1 reviews)

Home > PTFE Coated Fiberglass Fabrics > Standard Grade

Description

Standard Grade

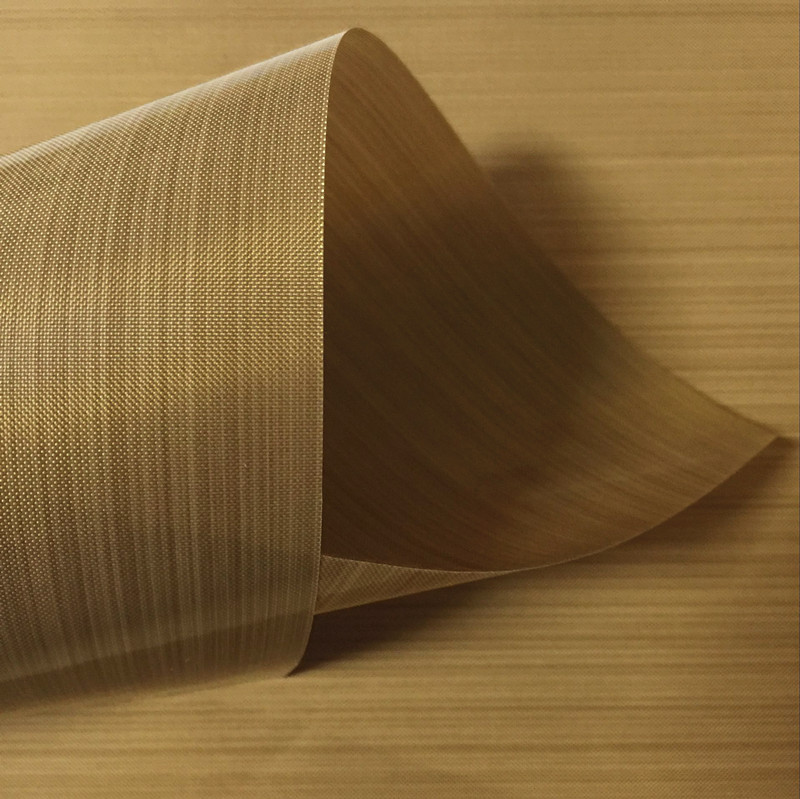

Standard Grade PTFE Coated Fiberglass/Glass Cloth possesses an optimal ptfe content, and leaves a middle fabric impression. As the most widely used ptfe coated fiberglass cloth, our standard grade cloth provides a superior smooth, non stick surface and a high temperature remarkable release characteristics. Our Standard PTFE Coated Fiberglass Cloth serves the largest range of industrial and general purpose applications.

Feature

Excellent release characteristics
Low surface friction
Operational and dimensionally stable from –100°F (-73° C) to +550°F (+288°C)
Abrasion and Chemical resistant
FDA compliant for food processing

Applications

Release sheets in heat sealing & laminating
Food baking sheets
Gaskets, seals and bearings for chemicals, oils and gases
Covers for hot plates, platens, chutes, hoppers, and rolls
Thermal insulation for high-temperature and chemical-resistant applications

Specification

Model	Standard Width(mm)	Total Thickness(mm)	Weight(g/m2)	Tensiles(N/5cm)
0075-135	1000, 1250, 1500	0.075	135	600
0125-255	1000, 1250, 1500	0.125	255	1100
014-296	1000, 1250, 1500	0.14	296	1100
023-490	1000-2800	0.23	490	2100
033-680	1000-2600	0.33	680	2700
